Standard Panel Antennas

5.8 GHZ 18 DBI 7.5″ PANEL ANTENNA KIT W/CABLE

Part Number Frequency Band Gain MIMO Dimensions (inches) Ant Cable Lightning Arrestor Mounting Bracket
5150 – 5875 MHz 18 dBi No 7.5 x 7.5 x 1.2 6ft, N-Male No Pole / Wall

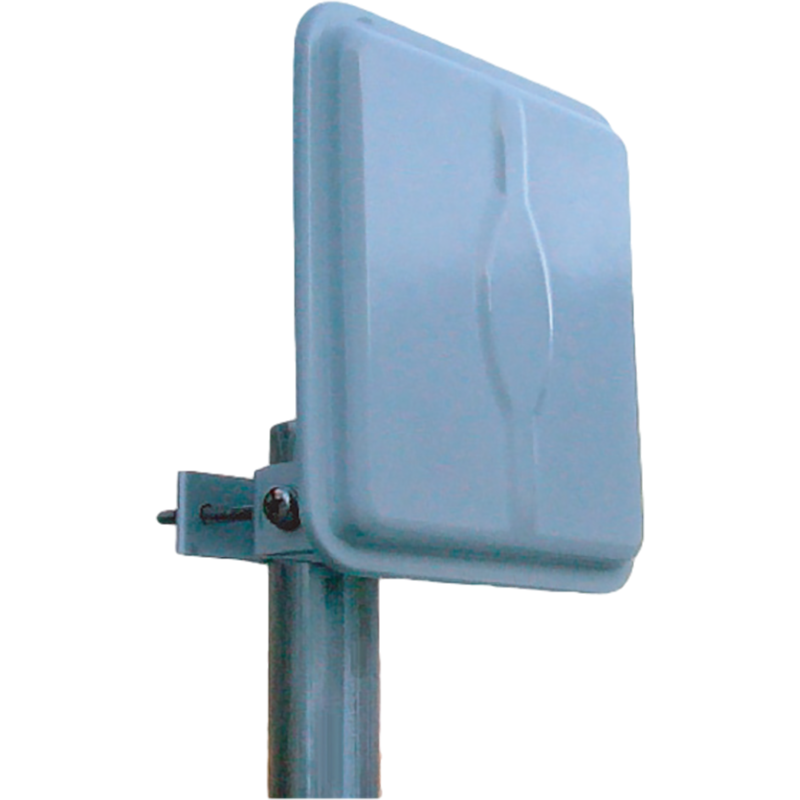

5.8 GHZ 19 DBI 7.5″ PANEL ANTENNA KIT W/CABLE

Part Number Frequency Band Gain MIMO Dimensions (inches) Ant Cable Lightning Arrestor Mounting Bracket
ANT.PA5819 5150 – 5850 MHz 19 dBi No 7.5 x 7.5 x 0.8 6ft, N-Male No Pole / Wall

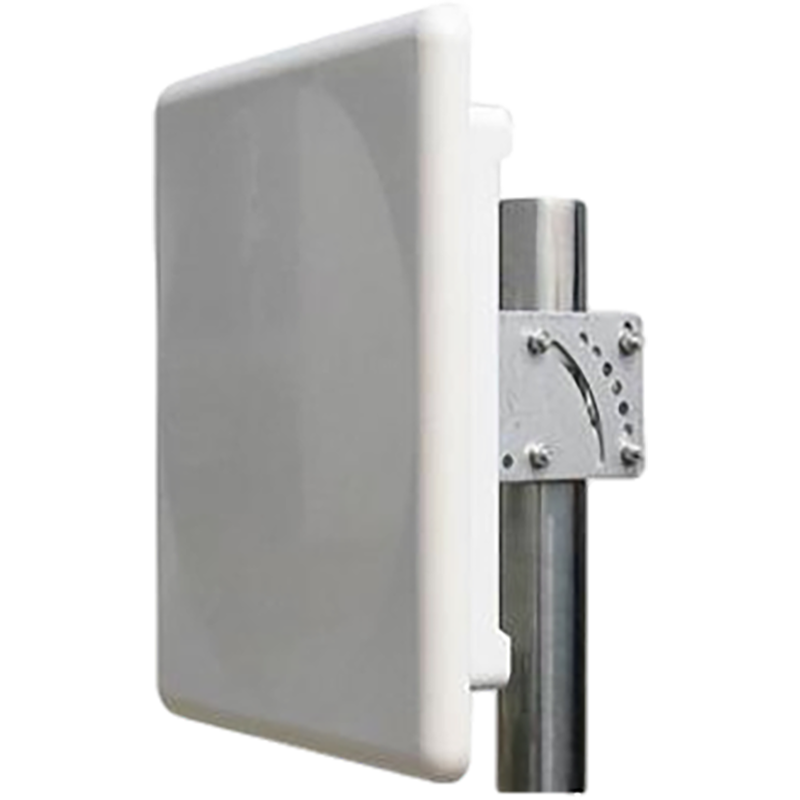

5.8 GHZ 22 DBI 12″ PANEL ANTENNA KIT W/CABLE

Part Number Frequency Band Gain MIMO Dimensions (inches) Ant Cable Lightning Arrestor Mounting Bracket
ANT.PA5822 5150 – 5875 MHz 22 dBi No 12 x 12 x 0.6 6ft, N-Male No Pole / Wall

5.8 GHZ 23 DBI 12″ PANEL ANTENNA KIT W/CABLE

Part Number Frequency Band Gain MIMO Dimensions (inches) Ant Cable Lightning Arrestor Mounting Bracket
5150 – 5875 MHz 23 dBi No 12 x 12 x 1 6ft, N-Male No Pole / Wall

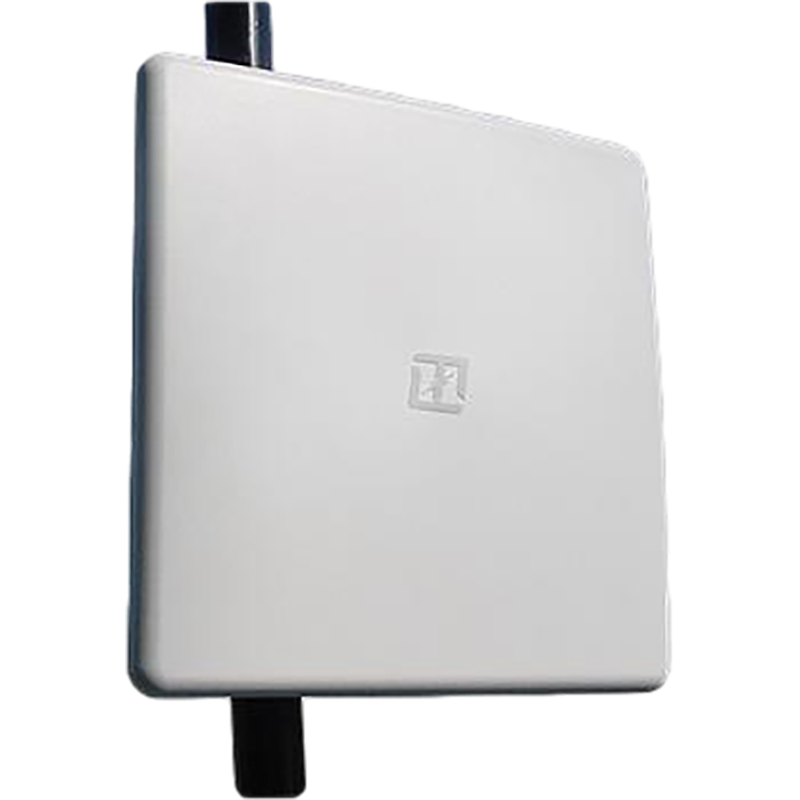

4.9 / 5.8 GHZ 23 DBI 12.4″ PANEL ANTENNA KIT W/CABLE

Part Number Frequency Band Gain MIMO Dimensions (inches) Ant Cable Lightning Arrestor Mounting Bracket
4900 – 5850 MHz 23 dBi No 12.4 x 12.4 x 0.98 6ft, N-Male No Pole / Wall
